Product information "Black Stainless Steel Linear Shower Drain - FlexGTB02 - Available in different sizes "

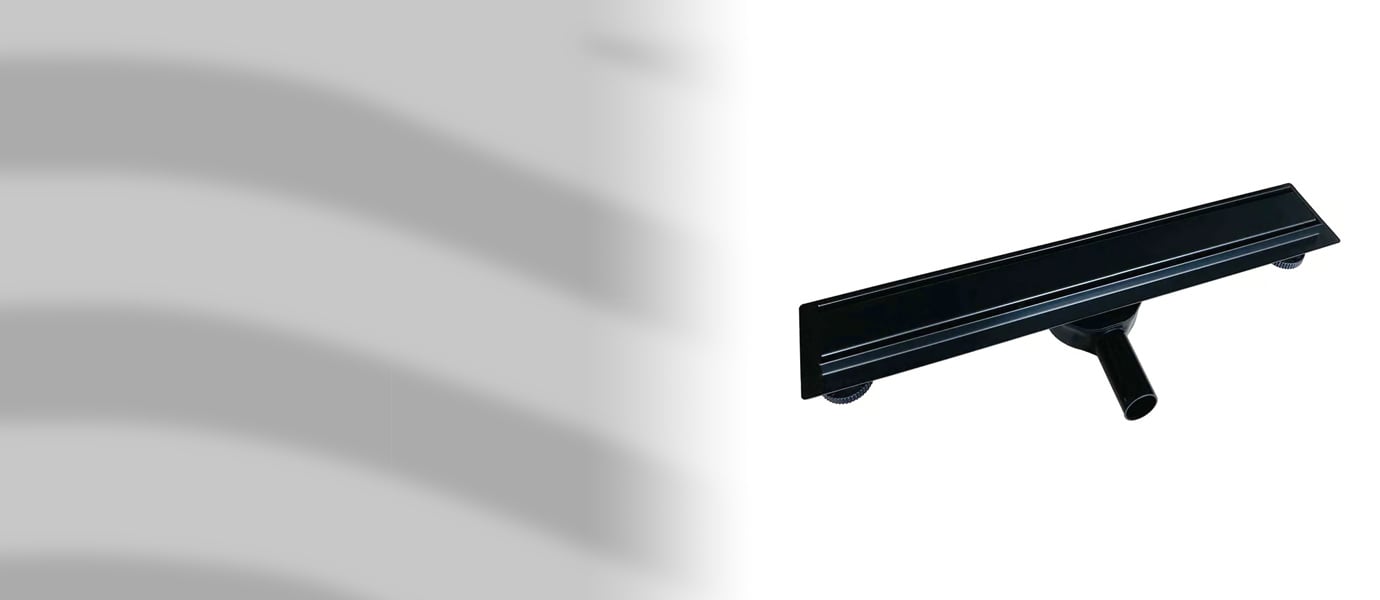

Stainless-Steel Shower Drain Flex GTB02 - Black -  incl. Siphon and Teflon Coating

Bernstein linear shower drain in five lengths avaible for a moderne bathroom.

Linear shower drains adaptable for all walk in showers and provide easy access for people with reduced mobility issues. A walk-in shower with linear shower drain and elegant design will be the star of your bathroom.

The shower drain has an integrated 360°rotatable siphon. Thanks the adjustable feets, the installation height can easily be adjusted to your requirements. The shower drain for floor-level showers has a drain with 40mm outlet and is delivered with a 50 mm adapter.

Select the required lenght 60 cm, 70 cm, 80 cm, 90 cm or 100 cm at the top of the page.

As always, BERNSTEIN is a guarantee of quality.



Features and specifications

Material Stainless steell SUS304/SUS316
Width 70 mm + mounting frame
Drain Lenghts 60cm, 70cm, 80cm, 90cm or 100cm
Water flow approx. 38 l/min.
Installation height   100 mm
  Integrated slope
  360° rotatable siphon
  Integrated siphon with 40mm outlet
  50 mm adapter
  2 height adjustable feets
  Removable cover



Technical drawing

(Click image for larger view)

Stainless-Steel Shower Drain Flex GTB02 - Black - incl. Siphon and Teflon Coating - Drawing



Download

Assembly Instructions



Items included in the delivery

  • 1x Linear shower drain
  • 1x Removable cover Flex GTB02
  • 1x Anti-odor system
  • 2x Height adjustable feets
  • 1x Adapter from 40 mm to 50 mm
  •  Sealing membrane
  •  Assembly instructions



Delivery

This product is dispatched by package and takes up to 3-4 working days to reach you. The carrier will try to deliver your package at home. In case you were not in when this happens, a delivery note will be left in your mail box, you can then collect the item at your local post office.

For deliveries to islands, additional charges will apply for sea transport . In order to calculate this charge with precision, your postal code (ZIP Code) will be required.

Length: 600mm, 700mm, 800mm, 900mm, 1000mm
