Product information "Shower Toilet BERNSTEIN Basic 1102 - special saving package 6 - and sanitary module for wall-mounted WC - white"

BERNSTEIN Shower WC Basic 1102 in White – Complete system

The flange-free BERNSTEIN Wash-WC complete Basic has the more important functions, that one would need after use of the toilette. The Rear-Wash and Lady-Wash, one has a warm water experience. Because of the oscillating jet, one also has a massage effect adding to the cleaning experience.

Water pressure and water temperature settings can be regulated via the settings knob on the right side of the Wash-WC for the 5 settings. The water jet has a germ-free self-cleaning, before every usage. While using the toilette, the water jet is in its‘ sheath

The 180°-Vortex-flush system allows for a powerful cleaning oft he toilet bowl, flusching from the right and from the left, eliminating germs and bacteria efficiently.

You have a 10 year guarantee on replacement parts, from the purchase date!

We would like to recommend that the installation should be done by a professional. For further information regarding installation and usage as well as technical information, you can download the PDF’s on our website.

As always, BERNSTEIN is guarantee of quality.


Features and specifications

Material toilet bowl: sanitary ware
toilet seat: thermosetting plastic (Duroplast) - antimicrobial
Color white
Dimensions 384 x 593 x 380 mm (W x D x H)
Weight about 32 kg net
Packing dimensions 465 x 660 x 480 mm
Connection electrical connection required
Electric tension 240 V, 50/60 Hz
Illuminant lampe LED - non interchangeable
Efficiency class G
Protection sign IPX4
  shower toilet complete system
  10-year spare parts availability guarantee
  bowl with hollow bottom without flange
  adjustable water temperature, 5 steps
  adjustable flow rate, 5 steps
  night lighting function adjustable on 3 levels:
permanently on or off, in Smart mode (device for automatically turning on the light in the dark)
  rear shower and lady shower
  wall-hung toilet
  antimicrobial toilet seat with soft-close function
  seat load capacity max.150kg
  180° - Vortex flushing system
  shower arm made of stainless steel SUS304
  self-cleaning and antibacterial shower arm
  shower nozzle removable for manual cleaning


Technical drawings

(Click image for larger view)

BERNSTEIN Dusch-WC Basic - Drawing 1 BERNSTEIN Dusch-WC Basic - Drawing 2



Installation Manuel - II/2018

Operators Manuel - II/2018


Video: Learn more about the shower toilet BERNSTEIN Dusch-WC Basic



Electronic equipment

Electronic equipment should not be discarded in household garbage.

Old or unusable electronic equipment can and should be discarded at your local community refuse department.


Delivered items

  • Shower toilet BERNSTEIN Basic
  • Sanitary module 805 White

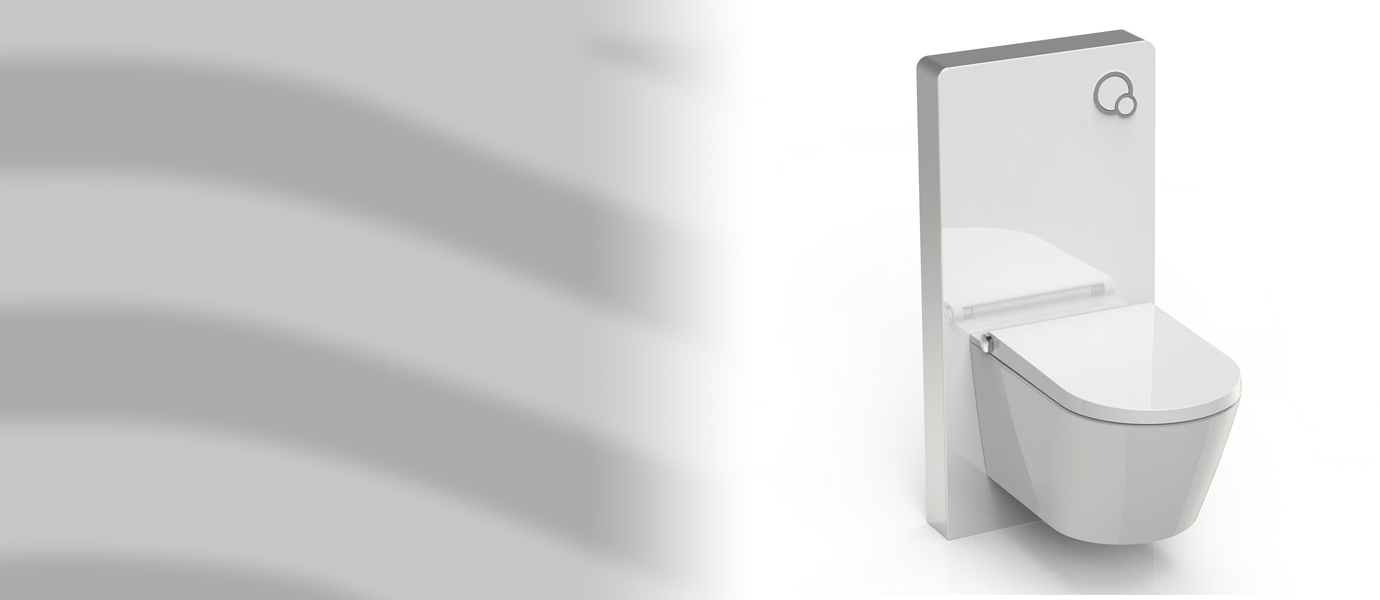

Sanitary module 805 for wall-mounted WC - with tempered glass front

The 805 sanitary modul of BERNSTEIN including the tank in tempered glass front will be a real eye-catcher in your bathroom.

It offers many of the benefits and installs in front of the wall. Hight-quality aluminium frame and 8mm tempered glass front in black give stability and elegance to the whole structure.

The installation of the pre-assembeld module is quick and easy.


Dimensions 1003,5 x 483 x 108 mm
Frame Aluminium
Front made of 8 mm tempered glass
Coulour White
Installation wall-mounted
Flushing dual flush
Flow rate flush adjutment range:
6 l. flush volume (adjustable flush volume:  4,8 - 7,4 liters)
3 l. smal flush volume (adjustable flush volume:  2,4 - 3,5 liters)
Flow pressure 0,7 - 7,5 Bar
Water temperature 4 - 35° C
Ambient temperature 3 - 40° C
Protection degree IPX4
Weight net 19,85 kg, gross 21,5 kg
  lateral water supply connection  (see drawing)


Technical drawings

(click on the image for larger view)

Sanitary module 805 - Drawing



Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision,  your postal code (ZIP Code) will be required.


Colour: White
