BERNSTEIN Shower Toilet PRO+1104 - special saving package 28 - and support frame G3008 with flush plate

Product number: 16122


Content: 1 piece
Trigger plate
Model 4112 white
Trigger plate
Model 009 black glass
Model 010 white glass
Model 4111 black
Model 4111 satin
Model 4111 white
Model 4112 white

Ready for shipment within 24h.

Product information "BERNSTEIN Shower Toilet PRO+1104 - special saving package 28 - and support frame G3008 with flush plate"

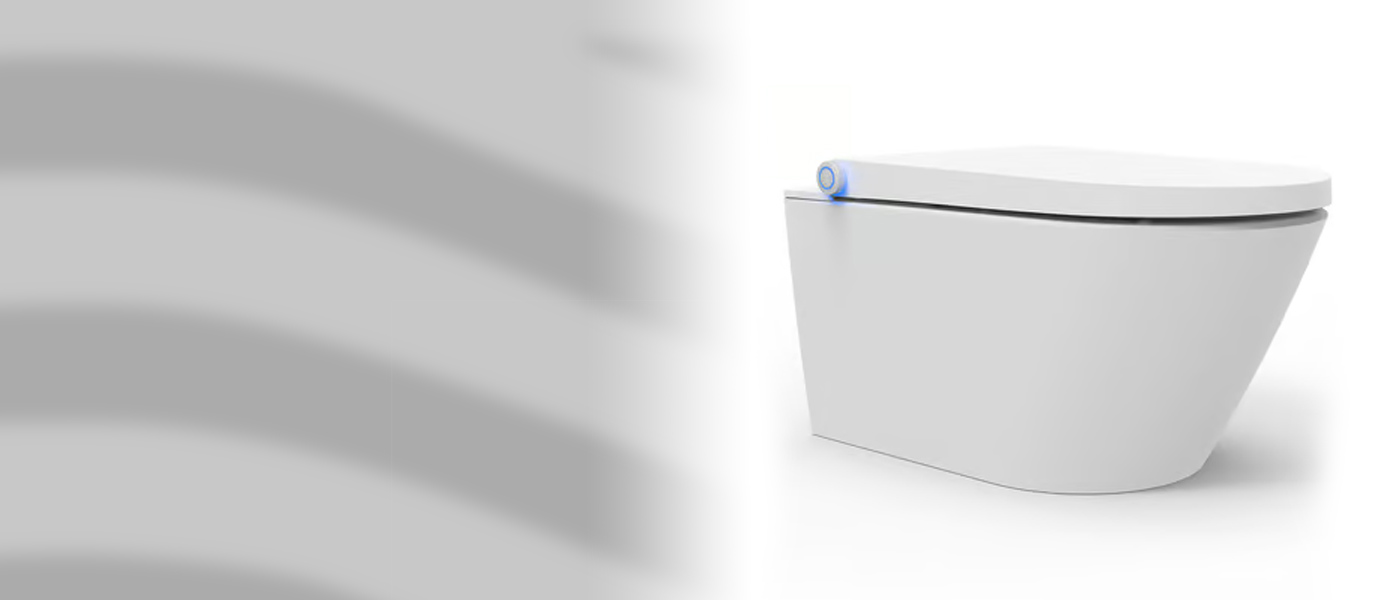

BERNSTEIN Shower Toilet PRO+ 1104 - white - complete set - angular design

BERNSTEIN intelligent rimless shower toilet with a range of functions and, thanks the perfect technology, offer every day fresh and clean feeling.

The expandable shower arm made of high quality stainless steel provides a hygienic cleaning experience. The self-cleaning antibacterial nozzle has a pulsating and oscillating massaging jet for a pleasant wash. The water temperature and the jet intensity are adjustable. The shower arm is automatically cleaned with fresh water before and after each use. In order not to dirty it, the arm of the hand shower remains behind in the toilet bowl during the use of the toilet.


Optimum hygiene thanks to perfect technology

For your convenience, after the refreshing water rinsing, hot air dryer is at your disposal to eliminate unpleasant humidity. Its temperature is also adjustable. And do not worry about bad smells anymore As soon as you sit down on the toilet seat, the built-in fan automatically trips and diverts odors into the odor filter.

The 180 ° Vortex rinse system provides deep cleaning. Water for rinsing comes from both sides of the toilet bowl without flange and thus reaches all areas. Dirt and limestone are unlikely to become embedded.

The softclose toilet seat closes smoothly and quietly. For perfect hygiene, it is coated with an antimicrobial additive that leaves no chance for germs. Even after many cleaning with detergents, it does not lose its effectiveness.

To further increase the comfort of the BERNSTEIN Shower Toiltes PRO+ 1104, you have a remote control with which you can make all the settings.

Another highlight of the shower toilet is the integrated night light sensor. Soft lighting illuminates the contour of the toilet seat and guides you safely the toilet.

We recommend that you hire a professional to install your shower toilets. For further information, please refer to the assembly and operating instructions below.

As always BERNSTEIN is a guarantee of quality.


Features and specifications

Material toilet bowl: sanitary ware
toilet seat: thermosetting plastic (Duroplast) - antimicrobial
Color white
Dimensions 384 x 593 x 380 mm (W x D x H)
Weight about 32 kg net
Packing dimensions     465 x 660 x 480 mm
Connection electrical connection required
Electric tension 240 V, 50/60 Hz
Illuminant lampe LED - non interchangeable
Efficiency class G
Protection sign IPX4
  shower toilet complete system
  10-year spare parts availability guarantee (from date of purchase)
  bowl with hollow bottom without flange
  wall-hung toilet
  antimicrobial toilet seat with soft-close function
  seat load capacity max.150kg
  180° - Vortex flushing system
  shower arm made of stainless steel SUS304
  self-cleaning and antibacterial shower arm
  shower nozzle removable for manual cleaning
  rear shower and lady shower
  warm air dryer
  activated carbon filter odor absorber
  night light function
  remote control (batteries not included);
two batteries are required (1.5 V, LR03 / AAA)


Technical drawings

(Click image for larger view)

BERNSTEIN Shower Toilet PRO+ 1104 - Drawing 1 BERNSTEIN Shower Toilet PRO+ 1104 - Drawing 2




Assembly instructions BERNSTEIN shower toilet PRO+ 1104

Operating instructions BERNSTEIN shower toilet PRO+ 1104



Video: Discover more features on the BERNSTEIN SHOWER TOILETS PRO+


Information according to the German Batteries Act and in regards to EU guidelines

We are obligated to inform you according to the Batteries Act (BattG) as follows:

Disposing of batteries into household garbage is not permitted; you are bound by law to return used batteries. Used batteries can contain harmful substances which can damage the environment or your health when not disposed of correctly. Batteries also contain important commodities such as iron, zinc, manganese or nickel which will be recycled. You may send the used batteries back to us, or you can return them to your local recycling center free of charge (recommended). The symbol of the crossed waste container is a warning against disposing of hazardous materials into household garbage.

  • at a collection point
  • points of sale that market batteries


Electrical and electronic equipment

Electrical and electronic products should not be thrown away with household waste.

Consumers can return their WEEE to one of the municipal collection points free of charge.


Items included in the delivery

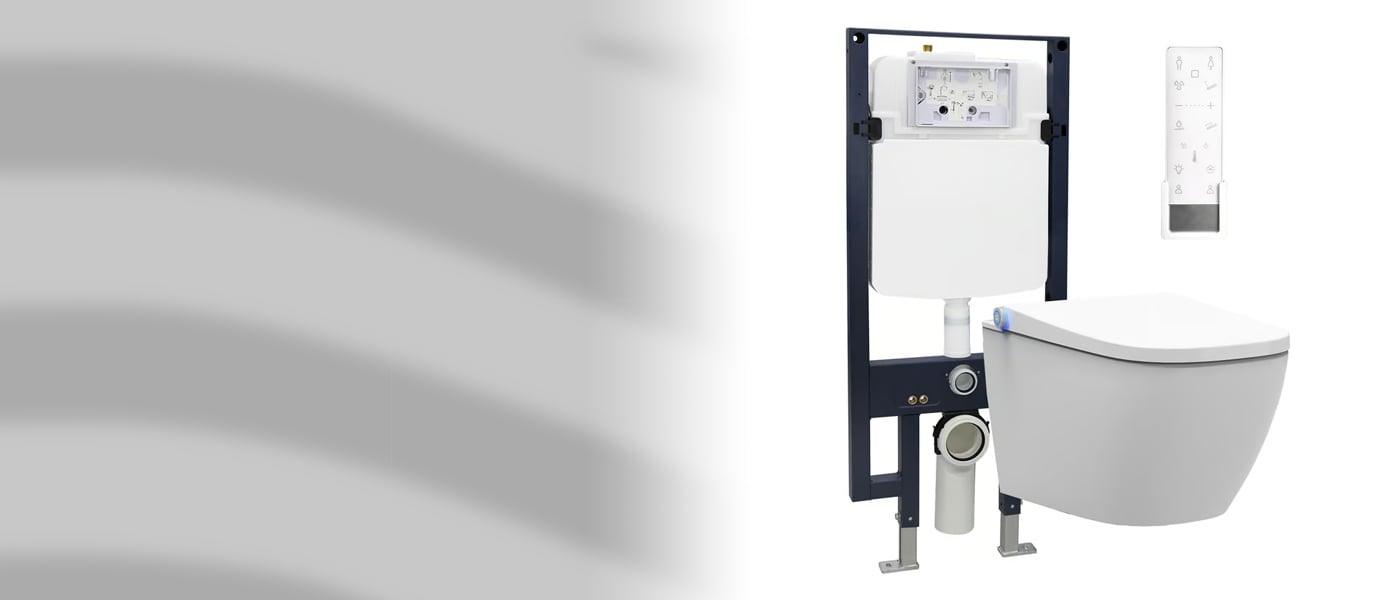

  • BERNSTEIN Shower Toilets PRO+ 1104
  • Support frame G3008
  • Flush plate - product variations


Bernstein support frame G3008

  • adjustable height
  • excellent corrosion-resistant with Dacromet-coating
  • concealed cistern with dual-flush plate
  • water-saving dual flush plate (small push button flush plate adjustable: 3-5 l.large push button flush plate adjustable: 4,5-7 l.)
  • flush volume adjustable
  • easy installation of the flush plate
  • suitable for renovations as well for new construction


Product details

Dimensions 497 x 1140-1340 (adjustable) x 90-110 (adjustable) mm (WxHxD)
Installation height     adjustable: 1140-1340mm
Installation depth adjustable: 90-110mm
  self-supporting frame
  feet adjustable
  for drywall construction
  flush tank condensation and acoustic isolation, front operation
  with flush plate, model and colour selectable
  dual flush system
  small push button flush plate adjustable: 3-5 l.
  large push button flush plate adjustable: 4,5-7 l.
  angle valve made of brass
  easy installation of the flush plate
  with sound proof WC
  Water behind/above the center
  with wall mounting kit for steady installation of wall elements


Technical drawing

(click the image for larger view)

Bernstein support frame G3008 - Drawing


Flush plates - model selectable in variant articles

Flush plate 4111

Colour matt black, matt white or satin
Material hight-quality ABS
Dimensions 245 x 165 mm

Trigger plate 4111


Flush plate 4112

Colour matte white
Material hight-quality ABS
Dimensions 245 x 165 mm

Trigger plate 4112


Flush plate glass

Colour white or black
Material hight-quality glass
Dimensions 245 x 165 mm

Trigger plate in glass



Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.

For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
