Corner shower with revolving doors, corner entry EX809 - 6 mm Nano real glass - 90 x 90 x 195 cm
Product advantages
Details

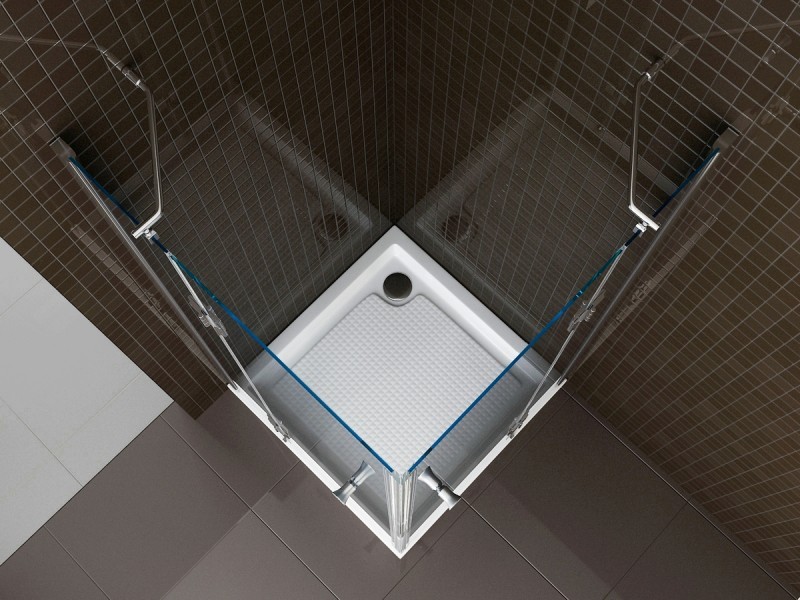

Shower cubicle corner shower 6 mm nano real glass EX809 with corner entry
Space-saving corner shower with corner entry and doors with convenient lift-and-lower mechanism.
A corner shower is the ideal solution for bathrooms with limited space. The EX809 offers many advantages with a practical 2-door corner entry, the 6 mm thick toughened safety glass and the nano-coating.
For a more flexible installation, the wall profiles allow an adjustment range of up to 15 mm for wall unevenness. The doors close tightly by means of magnets and are easy to handle thanks to the lifting and lowering mechanism. The nano-coating prevents excessive formation of limescale stains. Stainless steel stabilisation brackets provide a robust construction.
Inside flush hinges made of high-quality brass ensure, by means of the four screw connections, that the shower doors remain permanently in position and do not sink. The stainless steel door handles are beautifully rounded and sit well in the hand.
The shower is suitable for barrier-free, floor-level installation or installation with a shower tray. Matching shower trays and elegant shower channels can be found in our BERNSTEIN bathroom shop.
| Model | EX809 |
| Installation situation | Corner installation |
| Shower shape | Corner shower |
| Door type | Hinged doors |
| Door hinge | Flexible | Left | Right |
| Door opening | Outwards | Left | Right |
| Door seal Magnetic lock | Yes |
| Door handle type | Bar handle |
| Door handle material | Stainless steel |
| Dimensions base area (WxL) | 90x90 cm |
| Door width | 41 cm |
| Width side walls | 42 cm |
| Entrance | Corner entry |
| Entrance width | 58 cm |
| Glass property | ESG safety glass (DIN EN 12150) |
| Type of glass | Clear glass |
| Nano sealing | Yes |
| Glass thickness | 6 mm |
| Glass height | 195 cm |
| Profile type | Partially framed |
| Profile material | Aluminium |
| Compensation area in the wall profile | 15 mm |
| Profile colour | Chrome colour |
| Profile surface | Glossy |
| Material hinges | Brass | chrome-plated |
| Hinges flush with inner surface | Yes |
| Lift and lower mechanism | With lift/lower function |
| Installation type | With shower tray | Flush with floor | Without shower tray |
| Packaging dimensions (LxWxH) | 204 x 51 x 8 cm |
| Shipping weight | 54 kg |
- Shower enclosure EX809
- Flush brass hinges
- Stainless steel door handle
- Stainless steel stabilisation bars
- Aluminium profiles
- Magnetic door strip, rubber seals
- Assembly material
- Assembly instructions
Delivery
Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
