Foldable shower cabin enclosure EX213 - corner entry - genuine NANO glass 8 mm - 100 x 100 x 195 cm
Superb modern BERNSTEIN shower enclosure with a simple but elegant design. The screen height of 195 cm makes showering comfortable and convenient, even for tall people.
The screen is made from 8 mm thickness safety glass and coated with Nano. This makes it easy to clean and easy to maintain.
The aluminium profiles for fitting the enclosure to the wall can compensate for wall unevenness up to 20 mm. The hinged shower doors can be opened in either direction.
The shower tray on the picture is not included in the delivery. The enclosure works perfectly well with one of our shower drains for floor-flush mounting or mounting on a shower tray. You can discover these items on our website under shower enclosures.
Shower enclosures are wrapped in sturdy packaging. They are delivered on a pallet to ensure safe delivery.
As always, BERNSTEIN is a guarantee of quality.
Features and specifications
| Type of glass | transparent |
| Glass thickness | toughened safety glass ESG 8 mm, NANO coating |
| Dimensions | 100 x 100 x 195 cm (more detailed information are given below) |
| Weight | gross 87 kgs |
| Packaging | 11 x 60 x 205 cm |
| wall profiles in aluminium | |
| chrome-plated brass hinges | |
| foldable doors | |
| door with lifting and lowering mechanism | |
| Door opening | two doors completely foldable in either direction |
| magnetic door strip | |
| assembly material | |
| without shower tray |

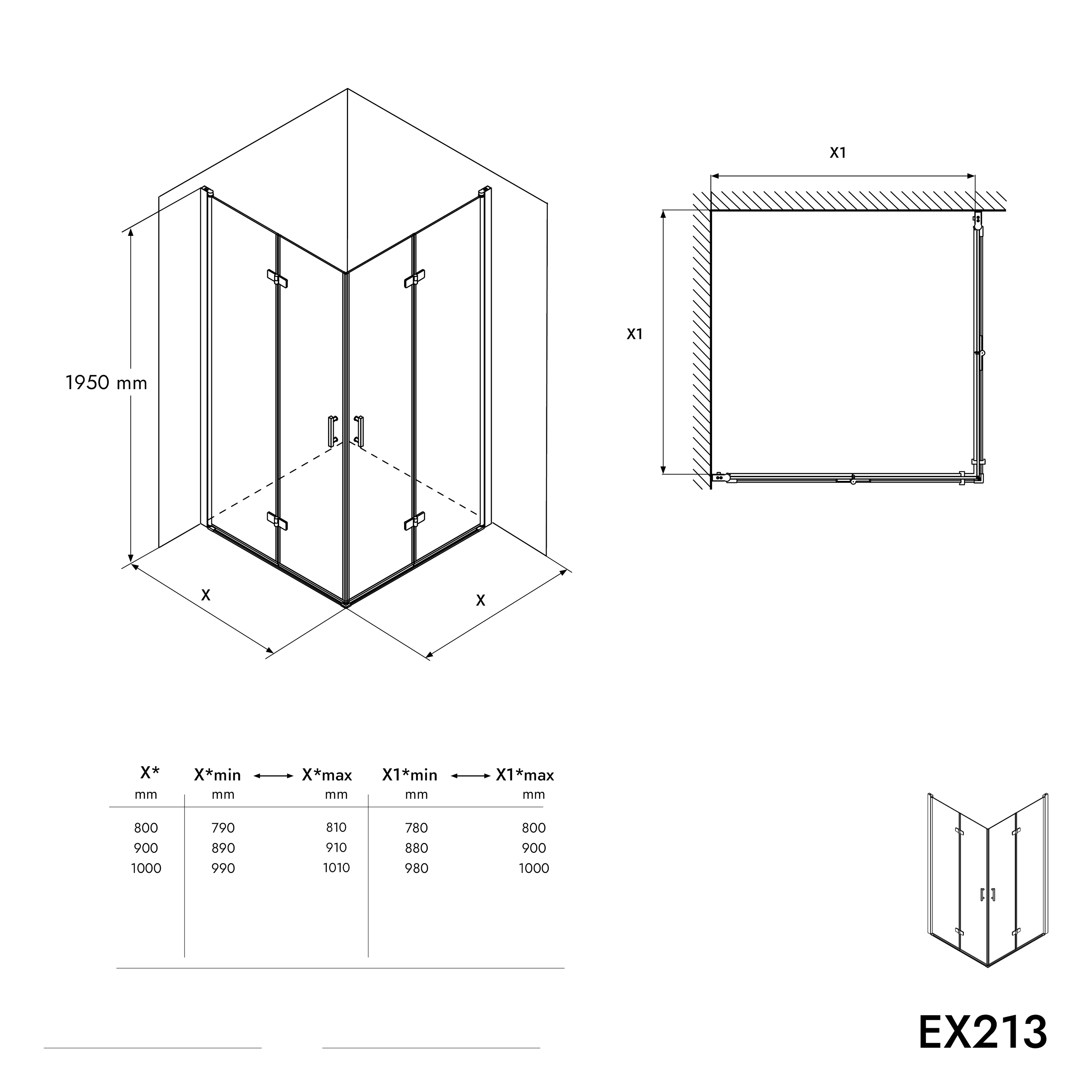

Technical drawing
(Click image for larger view)
Download
Assembly Instructions EX213
Assembly
- Floor-flush mounting or mounting on shower tray
-
When installing on flat ground, the shower enclosure is mounted directly on the tiled floor without a shower tray. Please note that the actual dimensions of the shower enclosure are smaller than the ordered dimension.
- Easy to install. No special technical know-how required. However, we recommend to have the installation carried out by a professional.
Maintenance
- Easy to clean and hygienic
- NANO coating protects the glass from adhering of dirt and makes it water-repellent
- Large surface to facilitate cleaning
Items included in the delivery
- EX213 shower enclosure
- Chrome-plated brass hinges, door handle
- Aluminium profiles
- Magnetic door strip and rubber seals
- Assembly material
- Assembly instructions
Delivery
Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculat this charge with precision, your postal code (ZIP Code) will be required.
| Concealed of the screw connections: | yes |
|---|---|
| Depth: | 100cm |
| Enclosure height: | 195cm |
| Glass thickness: | 8 mm |
| Glass type: | Clear glass |
| Handle type: | square |
| Hinges: | Flexible |
| Material: | ESG safety glass |
| Nano coating: | with Nano coating |
| Product line: | EX213 |
| Profile colour: | chrome |
| Profile material: | aluminium |
| Profile type: | frameless |
| Shower Entrance: | corner entrance |
| Shower enclosure dimensions: | 100x100cm |
| Shower installation: | floor-even, on shower tray |
| Special features: | Magnetic door seal, lift-lower function |
| Surface: | surface mounted hinges |
| Type of shower doors: | Folding shower door |
| Version: | Corner Shower |
| Width: | 100cm |
