Product advantages

Sophisticated quality & maximum comfort

  • Purist design with fully integrated fittings and castors
  • Sophisticated profiles, handles and hinges
  • Concealed screw connections
  • ESG safety glass according to DIN-EN 12150
  • Space-saving sliding door
  • Space-saving for bathrooms with little free space.

Easy cleaning & flexible installation

  • Nano-coating makes water roll off
  • Maximum flat surfaces facilitate cleaning
  • Compensation for wall unevenness of up to 20 mm
  • Floor-level installation or with shower tray
  • Left or right installation possible
  • CE certified

Details

Shower enclosure with sliding door Nano real glass DX806A FLEX - installation left or right

Space-saving corner shower with elegant sliding system!

The shower enclosure DX806A FLEX is made of 6 mm thick toughened safety glass and has a NANO coating (lotus effect). The corner shower consists of a sliding door element and a side panel.

The innovative nano-coating causes the water to bead up and calcification and dirt to adhere only with difficulty. The aluminium side profiles are discreet, but still allow for compensation of wall unevenness of up to 15 mm.

You are flexible when installing the shower door, as it is suitable for left- or right-hand installation. Floor-level installation without a shower tray is also possible. You can combine it with one of our shower channels. The shower tray shown is not included in the scope of delivery. You can also find a matching shower tray in our BERNSTEIN bathroom shop.

Model DX806A
Installation situation Corner installation
Shower shape Corner shower
Door type Sliding door with fixed side panel
Door hinge Flexible | Left | Right
Door opening Left | Right
Door seal Rubber seals
Door handle type Knob handles, inside | bar handles, outside
Door handle material Stainless steel

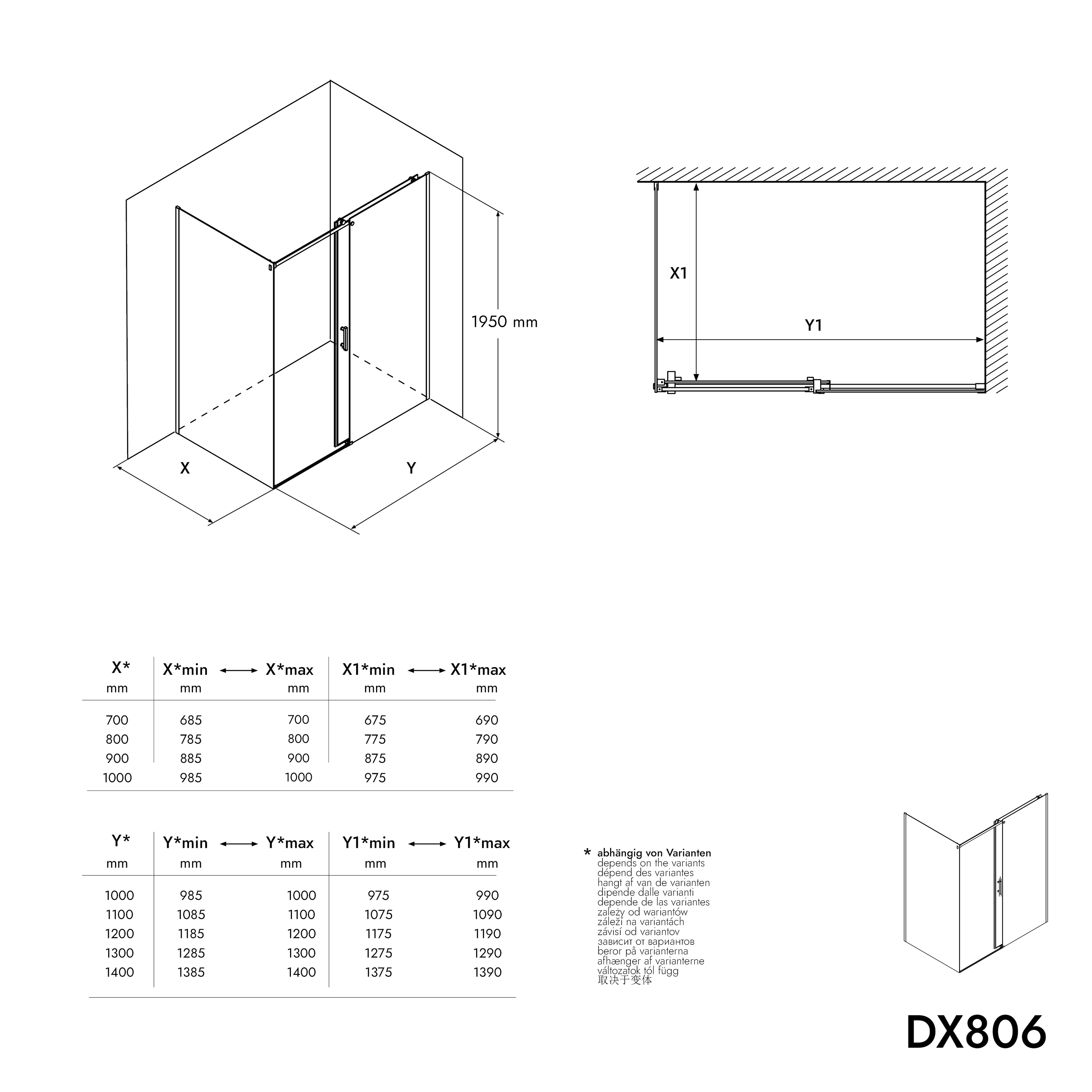

Dimensions base area (WxL) selectable, see drawing
Door width selectable, see drawing
Width of side panel selectable, see drawing
Entrance Front entry
Entrance width selectable, see drawing
Glass property ESG safety glass (DIN EN 12150)
Type of glass Clear glass
Nano sealing sealed
Glass thickness 6 mm thick
Total height approx. 195 cm
Profile type Partially framed
Profile material Aluminium
Compensation range per wall profile 15 mm
Profile colour Silver
Profile surface Chrome
Installation types With shower tray | Flush with floor | Without shower tray

  • Shower enclosure DX806A FLEX
  • Door handle
  • Sliding system
  • Wall profiles
  • Rubber seals
  • Assembly material
  • Assembly instructions
  • Without shower tray



Delivery

Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.

For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
