SMC Shower Tray - GT Serie - black - 3,2 cm high - 90cm width - available in different lengths and with optional accessories

Product number: 14612

€318.00*

Content: 1 piece
Dimensions shower tray
90x140cm
Dimensions shower tray
90x90cm
90x120cm
90x140cm
90x160cm
Waste fitting
Incl. drain type B
Waste fitting
Incl. drain type B
Including Dallmer drain Orio
Without drain set
-
+

Ready for shipment within 24h.

Product information "SMC Shower Tray - GT Serie - black - 3,2 cm high - 90cm width - available in different lengths and with optional accessories"

BERNSTEIN shower tray - GT serie - structured surface



This shower tray made of SMC (Sheet-Molding-Compound) will really win you over with its elegant and contemporary design, its incredible sturdiness and anti-scratch surface.

The tray is 3,2 cm high and can be easily installed on the floor of your bathroom.

Pick the perfect length for you, you can even select a waste system of your choice.

If necessary, this tray can be cut down to the desired size.



What does SMC stand for?

SMC stands for Sheet Moulding Compound (it consists of a ready to mould glass-fibre reinforced polyester), ideally suited for shower trays manufacturing. SMC is made of fibre-reinforced polymers compacted through heat and pressure. SMC is a top-quality material thanks to the use of impregnated fibres that ensure the shower trays are both light and incredibly robust.

As always, BERNSTEIN is a guarantee of quality.



Features and details

Dimensions Available dimensions:
90 x 90 x 3,2 cm (net weight approx. 11 kg)
90 x 120 x 3,2 cm (net weight approx. 15,4 kg)
90 x 140 x 3,2 cm (net weight approx.17 kg)
90 x 160 x 3,2 cm (net weight approx.19,4 kg)
90 x 180 x 3,2 cm (net weight approx. 21 kg)
Material SMC (Sheet-Molding-Compound)
Colour Anthracite
Surface structured
  can be cut down to the required size
  non-slip and anti-scratch surface
  Extremely robust thanks to the special structure of its lower side
  Long-lasting
  Integrated waste inclination
  Waste diameter Ø 90mm
  Removable safety cover
  DIN standard
  DIN 51097, EN 274-1/-2  and EN 14527 certified
  easy to clean
  easy to install



Technical drawings

(click on the image for larger view)

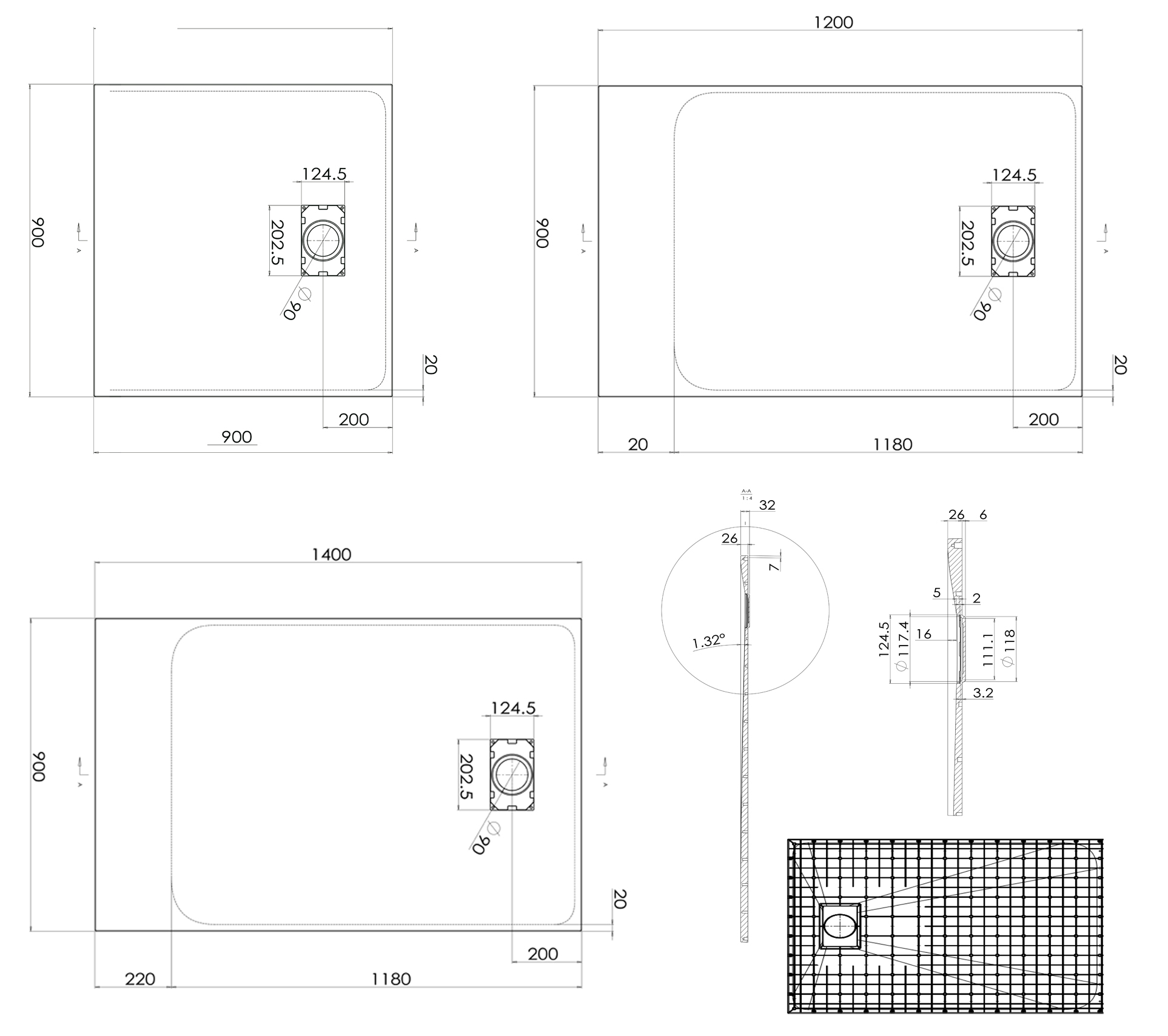

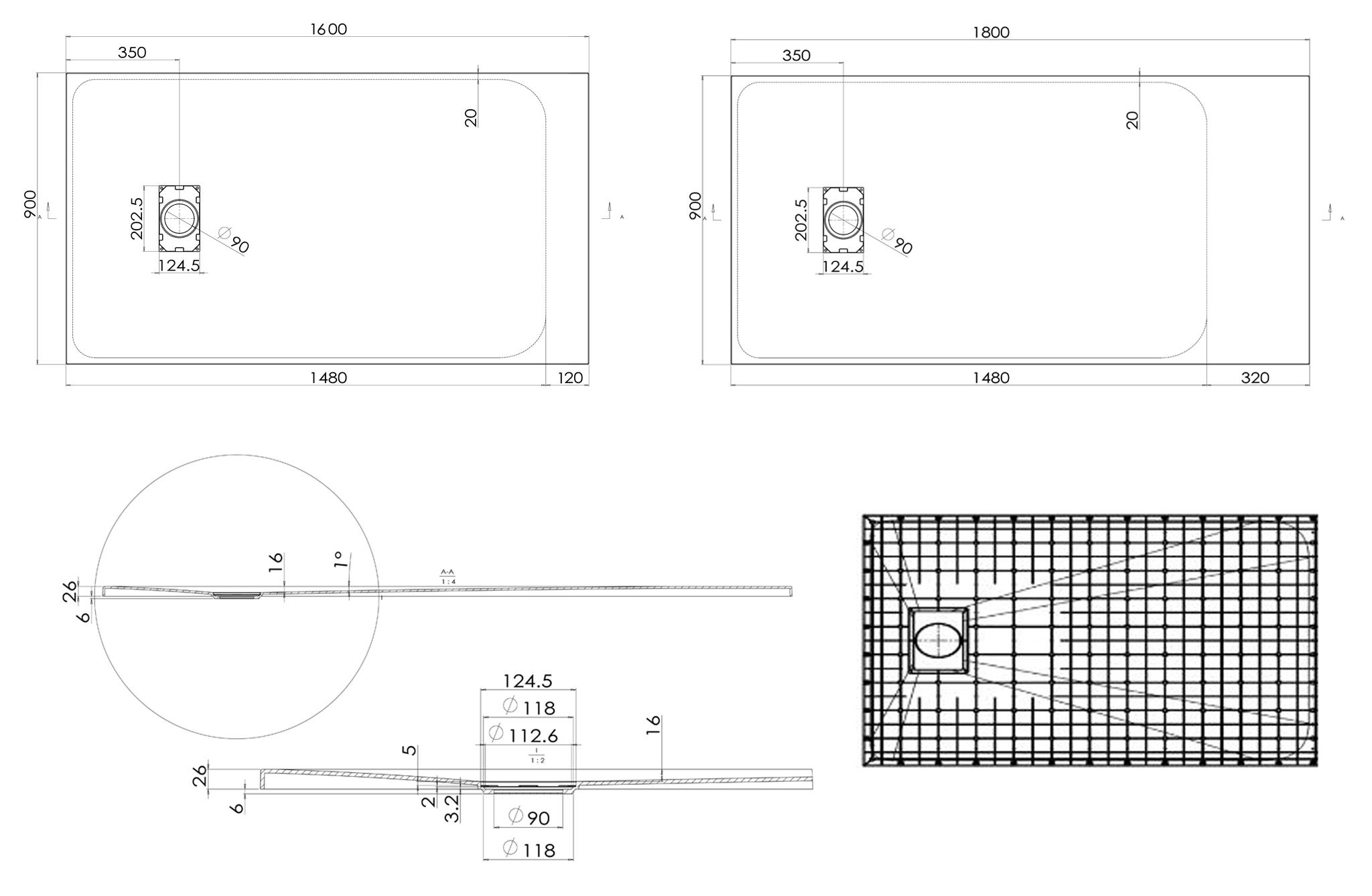

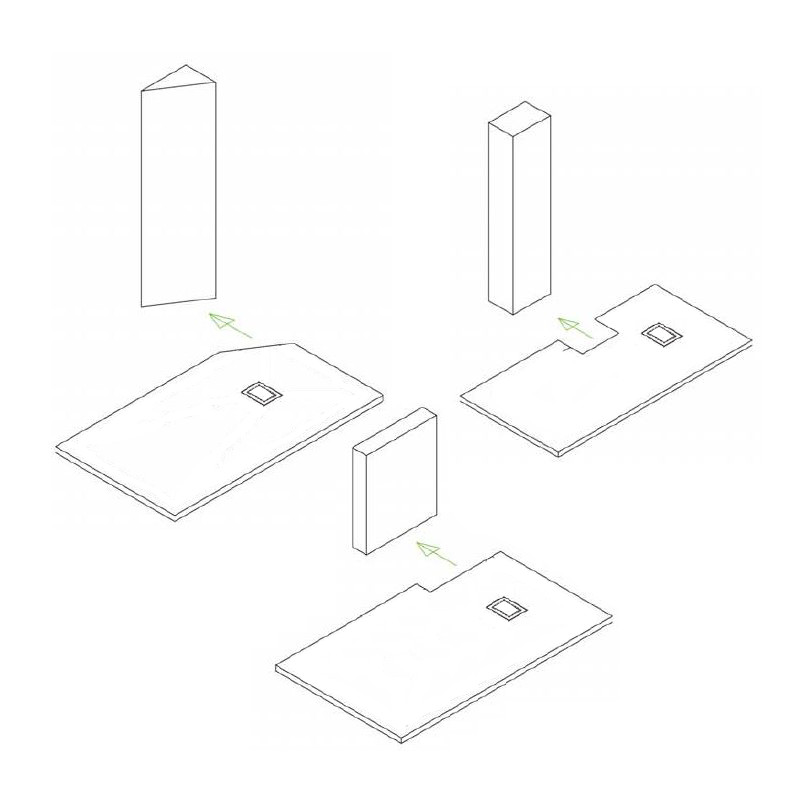

SMC shower tray 90cm-120cm-140cm - Détails SMC shower tray 160cm-180cm - Détails SMC shower tray - suitable cut to size!



Included in the delivery

  • Shower tray in the required dimension



Optional:

  • Plug and waste fittings



Important:

The lower surface of this product doesn´t allow it to be installed on MEPA mounting feet or on a support frame.



Available options:

Type B plug and waste system

Material plastic, chrome-plated cover
Height 80 mm
Waste hole 90 mm
Outlet Horizontal DN 40/50 mm
  Suitable for shower trays with a 90cm Ø waste
  removable insert for an easy cleaning
  45° elbow pipe

Type B plug and waste system



Dallmer Orio flat syphon

Material highly resistant polypropylene, chrome-plated cover
Waste approx 85 mm high
Version DN 50 floor drain
  Spherical joint, can be adjusted from 0  to 15 degrees
  removable syphon
  safety cover/assembly tool

Dallmer Orio flat syphon



Flow rate according to DIN EN 274
(accumulation height 15mm)

    Standard   Flow rate
DN 50   0,4 l/s.   0,59 l/s.



Delivery

Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.

For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.



Colour: Black
Dimensions shower tray: 90x90cm, 120x90cm, 140x90cm, 160x90cm, 180x90cm
Material: SMC
Pop-up waste: without pop-up waste
Shape shower tray: Quarter circle, Rectangular
Surface shower tray: Structure, anti-slip
outlet cover: with outlet cover

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

Question : Mit welchem Werkzeug kann die Duschwanne geschnitten werden? was wird dazu empfohlen? ist es möglich die Duschwanne auf der ganzen Länge oder Breite zu kürzen? zum Beispiel von 100 cm auf 97,5 cm? danke
From : customer

Answer:
Guten Tag, vielen Dank für Ihre Anfrage. Die Duschtasse kann auf jeder Seite mit Hilfe einer Stichsäge oder einer Kreissäge mit feinem Sägeblatt gekürzt werden.
Mit freundlichen Grüßen
BERNSTEIN-BADSHOP

Question : Wie wird diese Duschwanne eingebaut? Auf dem Estrich oder auf Isolierung? Wie und womit verklebt?
From : customer

Answer:
Guten Tag, vielen Dank für Ihre Anfrage. Unsere SMC Duschtassen kann nicht mit einem herkömmlichen Untergestell unterbaut werden und wird direkt auf den Estrich oder den Fliesen mithilfe von Montage- oder Fliesenkleber montiert. Sofern die Duschtasse unterbaut, werden muss, können Sie dies mit Styrodur oder Ytongsteinen kombinieren.
Mit freundlichen Grüßen
BERNSTEIN-BADSHOP
