Sliding shower enclosure - EX802 - NANO -90 x 140 x 195 cm - various thicknesses available and optional tray
Shower enclosure with sliding door EX802 made of ESG safety glass - 90 x 140 x 195cm
Space-saving corner shower with high-quality sliding door system
The special feature of the EX802 is the high-quality workmanship of the material. The ESG safety glass used ensures a safe showering experience. We offer this model with a glass thickness of 6mm and 8mm.
Due to the lower weight, the handling of a shower enclosure with 6mm ESG glass is more comfortable, which is noticeable in daily use.
In addition, the material, such as the rollers of the sliding door, is subjected to less stress.
The magnetic door seal allows the sliding door to close securely. The aluminium profiles can compensate for wall unevenness of up to 2 cm.
The nano-coating ensures quick and easy cleaning of the glass elements.
Product details
| Door type | Sliding door |
| Profile | Aluminium, partially framed |
| Glass type | Clear glass |
| Glass thickness | 6mm / 8mm toughened safety glass (toughened safety glass to DIN-EN 12150) with nano-coating |
| Castors | Brass |
| Dimensions | 90 x 140 x 195 cm (for detailed dimensions of the glass elements, please refer to the drawing) |
| Entrance width | approx. 59 cm |
| Mounting | Can be mounted on both sides |
| Weight | 72kg (6mm) / 88kg (8mm) |
| Packaging | 9 x 88,5 x 204 cm |
| Nano-coating | Water and soap residues roll off - hardly any limescale deposits possible |
| High-quality stainless steel door handle | |
| Door profile with magnetic catch | |
| Aluminium wall profiles with compensation for wall unevenness up to 2 cm | |
| CE tested | |
| Incl. mounting material |

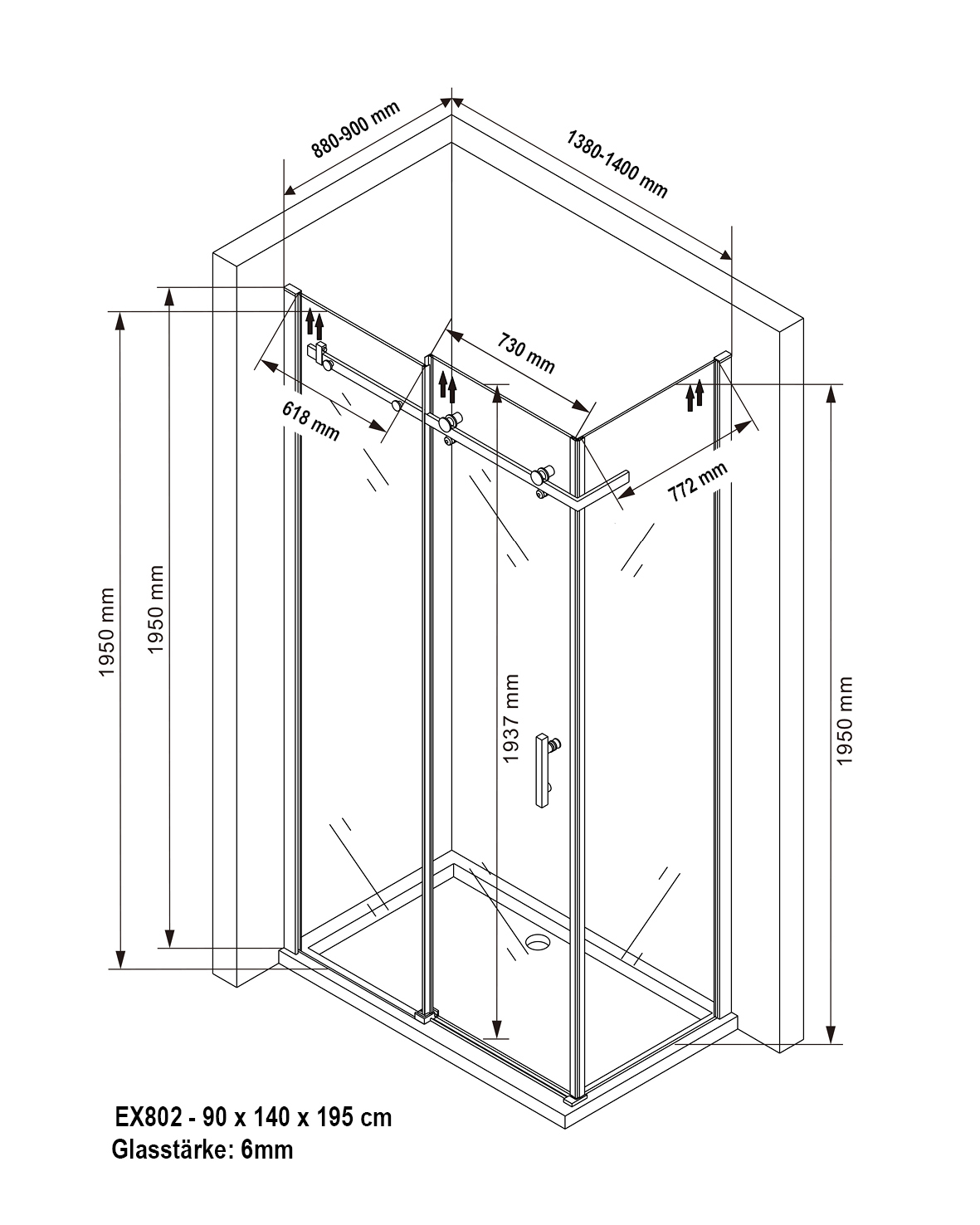

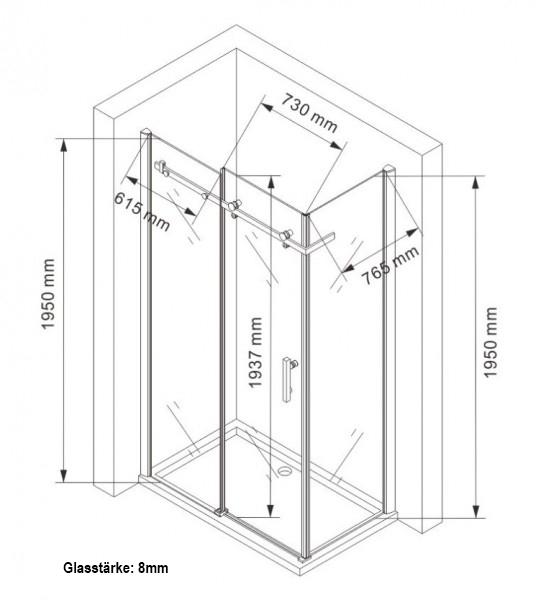

Drawing
(Click on the picture for an enlarged view)
Assembly
Simple assembly, also possible without special expertise. However, we recommend that you have the assembly carried out by a specialist.
Maintenance
- Easy to clean and hygienic
- Thanks to the nano-coating, water rolls off, dirt has no chance
- Large surfaces for easy cleaning
Download
Assembly instructions EX802Scope of delivery
- Shower enclosure EX802
- Door handle
- Sliding system
- Wall profiles
- Magnetic door strip, rubber seals
- Assembly material
- Assembly instructions
- Optional acrylic shower tray or SMC shower tray with drain set
Shipping information domestic
*Information 2-man shipping:
Shower enclosures (single or with shower tray) weighing 51kg or more can optionally be delivered free to the point of use by 2-man shipping, i.e. to where the goods are needed in the house, provided there is free access.
This service only applies to shower enclosures shipped individually. In combination with other articles, shipping is combined by forwarding agent to the kerbside.
Please note: 2-man shipping cannot be offered for island deliveries.

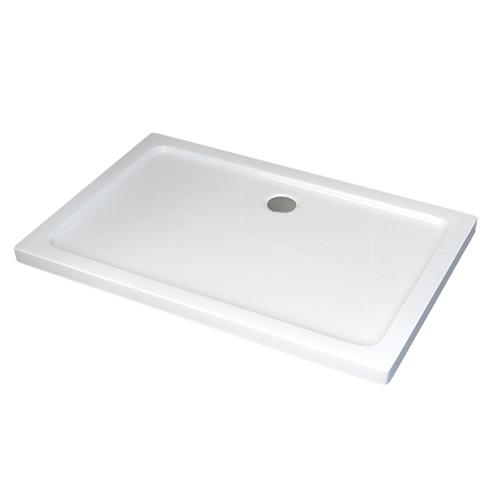

Acrylic shower tray incl. drain set
The high-quality shower tray made of sanitary acrylic with a base area of 140 x 90 cm is the perfect complement to the shower enclosure EX802.
The shower tray impresses with its very flat construction height of 5 cm. Floor-level installation of the shower tray is possible.
The drain set is included in the scope of delivery.
Product details
| Dimension | 90 x 140 x 5 cm (net weight approx. 26 kg) |
| Material | Sanitary acrylic |
| Colour | White |
| Non-slip surface | |
| Drain hole Ø 90mm | |
| DIN connection | |

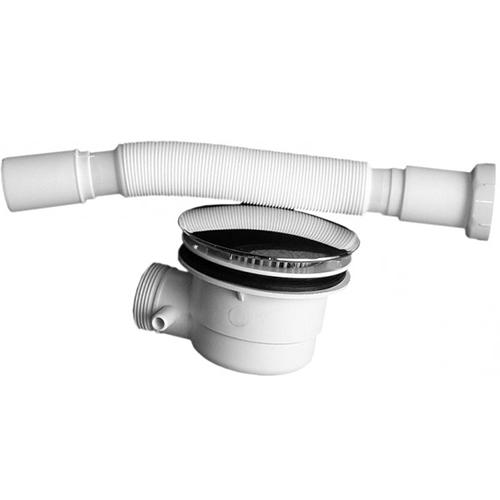

| Drain fitting | Plastic with chrome-plated drain cover |
| Flexible hose approx. 310-800 mm | |
| Height: 65 mm | |
| With siphon |

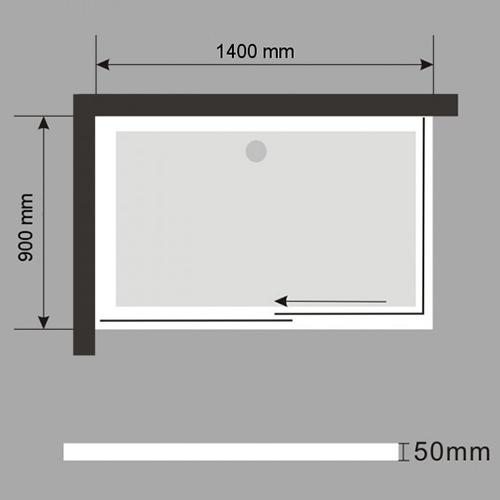

Drawings
(Click on the picture for an enlarged view)
BERNSTEIN shower tray GT series - With anti-slip surface!
This modern shower tray made of SMC (Sheet-Moulding-Compound) will impress you with its very low construction height of only 3.2 cm. The noble surface structure has a high-quality effect and convinces you with its light stone look.
Thanks to the robust SMC material, the shower tray offers an impact- and scratch-resistant surface. In view of the very flat height, a barrier-free, floor-level installation of the shower tray is possible.
You can cut this modern shower tray to fit your circumstances. The installation of this shower tray is relatively simple and quick.
What is SMC?
Sheet-moulding compound, or SMC for short, is a process for manufacturing plastics. The material is composed of glass fibres, polyester resins and other mineral fillers. The material is very heat-resistant, durable and robust.
Product details
Dimension | 90 x 140 x 3.2 cm (net weight approx. 17 kg) |
| Material | SMC |
| Colour | White |
| Surface | Structure |
| Dimensions can be cut to size | |
| Impact-, scratch- and slip-resistant surface | |
| Absolutely robust due to the bracing on the underside | |
| Anti-slip surface | |
| Long durability | |
| Drain hole Ø 90 mm | |
| DIN connection | |
| Certified according to DIN 51097, EN 274-1/-2 and EN 14527 | |
| Easy to clean | |
| Quick assembly | |
| Drain fitting | Plastic with chrome-plated cover plate |
| Height | 80 mm |
| Drain hole | 90 mm |
| Outlet | Horizontal DN 40/50 mm |
| Removable cleaning insert | |
| 45° drainage bend |

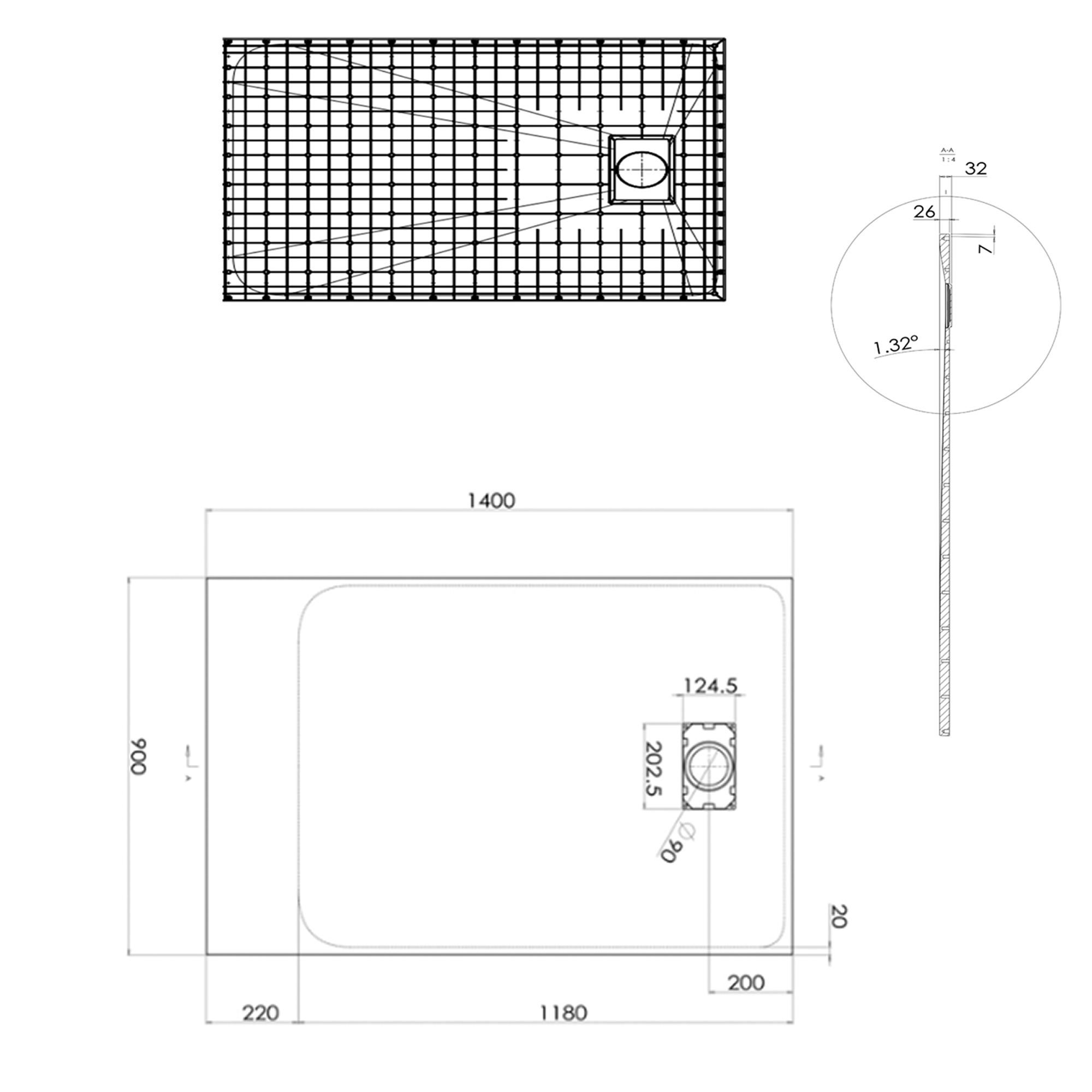

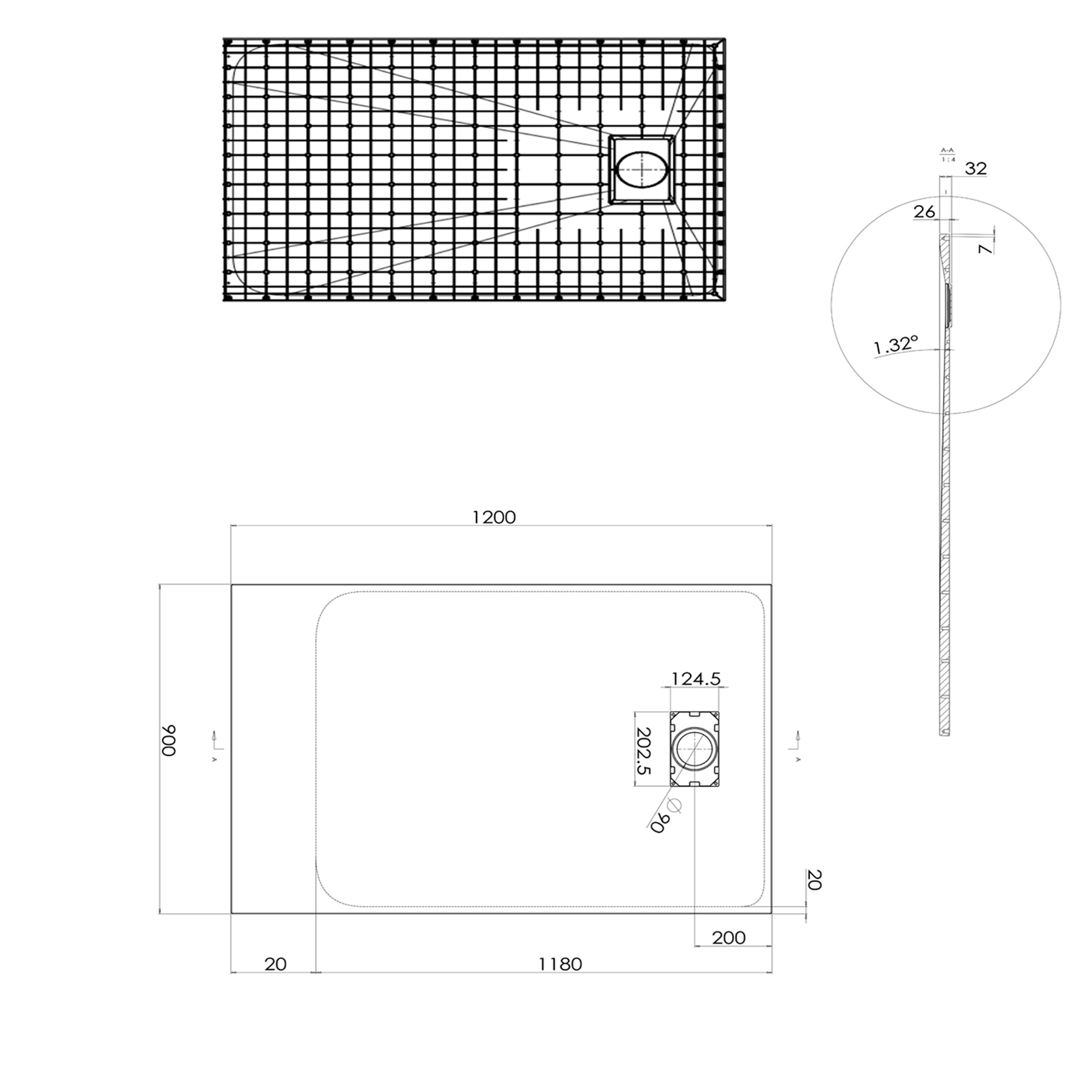

Drawings
(Click on the picture for an enlarged view)
Note
You cannot use the SMC shower tray with a Mepa foot frame or mounting frame due to the structure of the underside.
Delivery
Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
| Concealed of the screw connections: | yes |
|---|---|
| Depth: | 90cm |
| Enclosure height: | 195cm |
| Glass thickness: | 6 mm, 8 mm |
| Glass type: | Clear glass |
| Handle type: | square |
| Material: | ESG safety glass |
| Nano coating: | with Nano coating |
| Product line: | EX802 |
| Profile colour: | chrome |
| Profile material: | aluminium |
| Profile type: | partial frame |
| Shower Entrance: | side entrance |
| Shower enclosure dimensions: | 90x140cm |
| Shower installation: | on shower tray |
| Special features: | Magnetic door seal |
| Type of shower doors: | Sliding shower door |
| Version: | Corner Shower |
| Width: | 140cm |
