Walk-in shower enclosure EX101 - mirror middle central band - 10 mm NANO genuine glass - width selectable
Walk-in shower screen EX101 with fixed panel - genuine NANO glass - mirror middle central band - width selectable
Superb BERNSTEIN shower screen that will enhance the beauty of your bathroom with blend of simplicity and elegance.
The screen can be used as corner shower or can simply be mounted to the wall. The 200 cm glass height makes it comfortable and pleasant to use, even for tall people.
The panel is made from 10 mm safety glass with Nano effect. This makes cleaning and maintenance very easy.
Adjustable stabiliser bar made from chrome-plated metal.
Suitable for floor-mounting or mounting on a shower tray.
The lateral aluminium profile can compensate for wall unevenness up to 15 mm.
Available in different sizes. You can choose the most suitable width for your bathroom!
The shower screen are wrapped in sturdy packaging. They are delivered on a pallet to enclosure safe delivery.
As always BERNSTEIN is a guarantee of quality.
Features and specifications:
| Type of glass | transparent mirrored central band |
| Glass thickness | toughened 10 mm safety glass ESG with NANO coat |
| Height | 200 cm |
| Width | selectable: 90cm, 100 cm, 110 cm, 120 cm, 130 cm, 140 cm, 150 cm, 160 cm (please check availability) |
| Stabilising bar | telescopic, adjustable from 80-140cm, chromed-plated metal |
Weight and packaging
| Width | Delivery weight | Packaging | ||
|---|---|---|---|---|
| 90 cm | 50 kg | 208 x 100 x 7,5 cm | ||
| 100 cm | 56,5 kg | 208 x 110 x 7,5 cm | ||
| 110 cm | 62,5 kg | 208 x 120 x 7,5 cm | ||
| 120 cm | 68,5 kg | 208 x 130 x 7,5 cm | ||
| 130 cm | 75,5 kg | 208 x 140 x 7,5 cm | ||
| 140 cm | 83,5 kg | 208 x 150 x 7,5 cm | ||
| 150cm | 89,5 kg | 208 x 160 x 7,5 cm | ||
| 160cm | 95,5 kg | 208 x 170 x 7,5 cm |

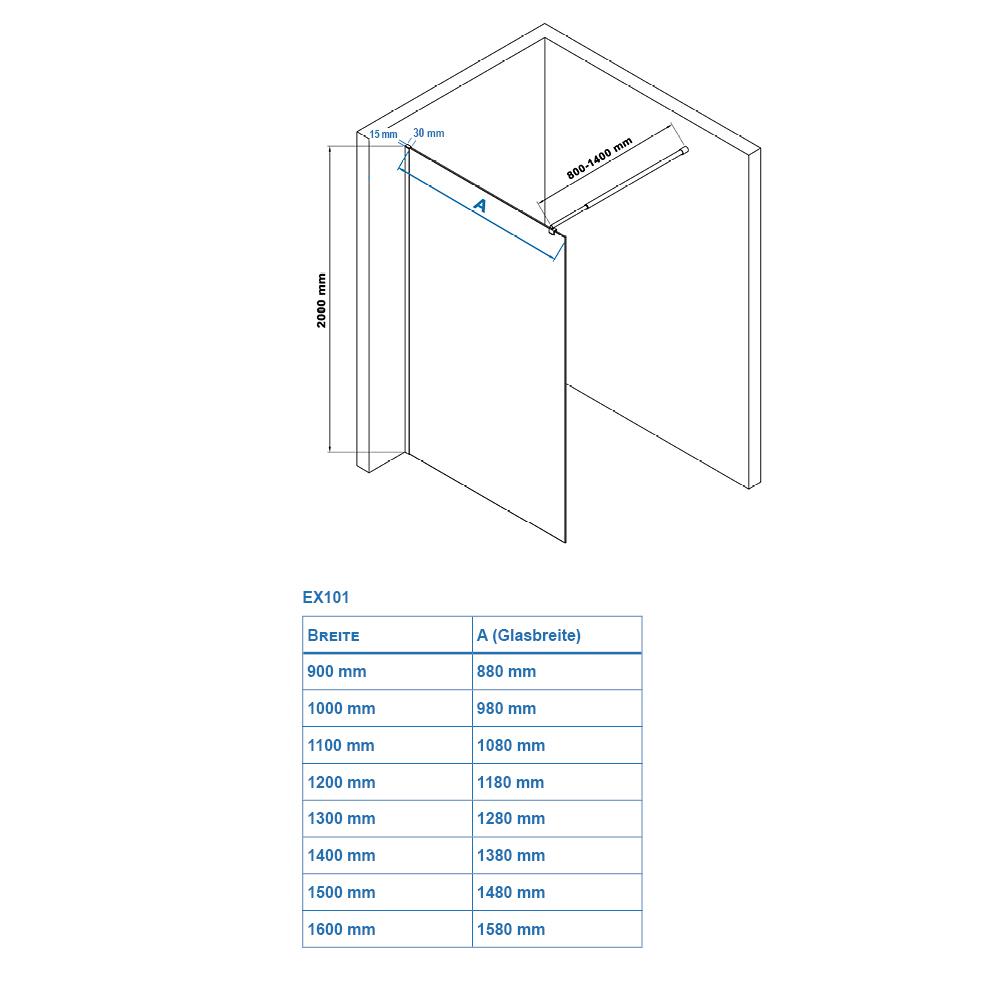

Technical drawing
(click image for larger view)
Download
Assembly Instructions EX101
Assembly
- Floor-flush mounting or mounting on shower tray
- Easy to install. No special technical know-how required. However, we recommend to have the installation carried out by a professional.
Maintenance
- Easy to clean and hygienic
- NANO coating protects the glass from adhering of dirt and makes it water-repellent
- Large surface to facilitate cleaning
Items included in the delivery
- Walk in shower enclosure
- Stabiliser bar
- Chromed aluminium profile
- Without doors
- Sealing surface NANO
- Assembly material
- Assembly instructions
- Wall mounting or mounting on a shower tray
- Without shower tray
Delivery
Pallet shipments are delivered curbside by DHL Freight. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculat this charge with precision, your postal code (ZIP Code) will be required.
| Enclosure height: | 200cm |
|---|---|
| Glass thickness: | 10 mm |
| Glass type: | Mirror pattern |
| Hinges: | Flexible |
| Material: | ESG safety glass |
| Nano coating: | with Nano coating |
| Product line: | EX101 |
| Profile material: | aluminium |
| Profile type: | partial frame |
| Shower installation: | floor-even, on shower tray |
| Version: | Walk-In Shower |
| Width: | 90cm, 100cm, 110cm, 120cm, 130cm, 140cm, 150cm, 160cm |
