Solid Surface Shower Tray BA3097 - 90 x 90 cm - selectable colour
Solid Surface Shower Tray - BA3097 - 90 x 90 x 3,5 cm
This shower tray is supplied with a modern round drain cover made of mineral cast. With a slight incline towards the drain, the water can be discharged quickly and easy.
The shower tray in matt grey, matt white, matt black or quartz black effect is delivered without drain set. Please make your personal selection using the drop-down menus at the top of this page.
The surface of the colour quartz black has a quartz coated sand effect with in a matt crystal shine.The smooth and non porous surface is very elegant and easy to clean.
Have a look at our online catalogue our large selection of showers.
As always, BERNSTEIN is a guarantee of quality!
Product details
| Shower tray : matt grey, matt white, matt black | |
| Dimensions | 90 x 90 x 3,5 cm |
| Material | Solid Surface |
| Weight | net 36 kg / gross 40 kg |
| Shape | Rectangular |
| Additional details | Solid Surface drain cover |
| Diameter of plug hole Ø 90 mm | |
| Floor-level installation possible | |
| DIN connector | |
| Easy to clean | |
| Easy to install |
| Shower Tray: quartz black effect | |
| Dimensions | 90 x 90 x 3,5 cm |
| Material | Solid Surface with quartz sand coating |
| Weight | net 36 kg / gross 40 kg |
| Shape | Rectangular |
| Additional details | Solid Surface drain cover |
| Diameter of plug hole Ø 90 mm | |
| Floor-level installation possible | |
| DIN connector | |
| Easy to clean | |
| Easy to install |
Video: quartz black effect effect colour with high-quality quartz sand coating. Fast, clean and residue-free water flow.
Included in the delivery
Shower tray BA3097 in the desidered option
Optional:
- Plug and waste fittings
Cautions:
The inferior structure of the product doesn´t allow an installation on MEPA mounts feet or on a support frame.
Optional items

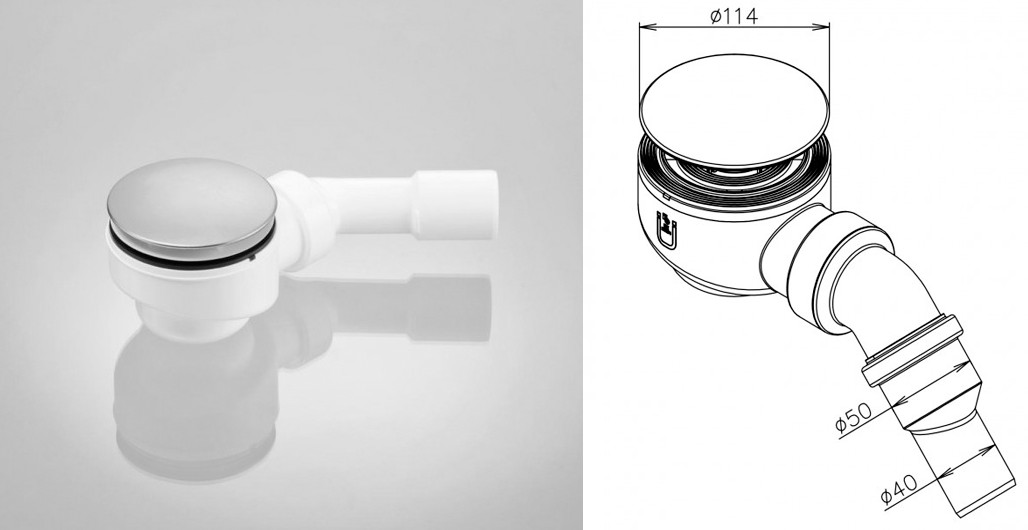

Plug and waste fitting Type B
| Material | Plastic with chromed cover top |
| Height | 80 mm |
| Dimensions plug hole | 90 mm |
| Horizontal outflow DN 40/50 mm | |
| Suitable for showers with 90 mm drain hole | |
| Removable cover | |
| 45° elbow |
Shower waste Dallmer Orio
| Material | Polypropylene |
| Flow rate | approx. 85 mm |
| Version | Lateral outlet DN 50 |
| Ball joint adjustable from 0 - 15 degrees | |
| Removable odour trap | |
| Protective cover |
Flow rate according to DIN EN 274
(drainage capacity accumulation height 15mm)
| Norm | Flow | |||
|---|---|---|---|---|
| DN 50 | 0,4 l/s | 0,59 l/s |
Delivery
Pallet shipments are delivered curbside. Please consider that the carrier will call you to fix delivery date/time, so kindly remember to indicate your phone number (landline or mobile phone) when placing your order.
For deliveries to islands, additional charges will apply for sea transport. In order to calculate this charge with precision, your postal code (ZIP Code) will be required.
| Kolor: | Biały, Czarny |
|---|---|
| Kubek prysznicowy: | Ćwiartka koła |
| Pokrywa drenażowa: | z pokrywą wylotu |
| Prysznic do powierzchni podłogi: | 90x90cm |
| Ustawiony zestaw: | bez wysuwanego pojemnika na odpady, z wysuwanym odpływem |
| materiał: | Odlew mineralny |
